Thermoseal C8200
More safety for the use with high concentrated acids.

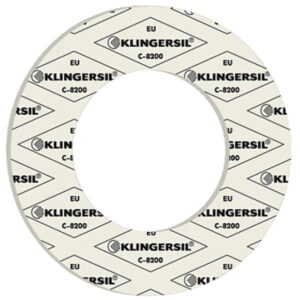

KLINGERSIL® C-8200 is a premium high-pressure gasket which offers more safety for the use with high concentrated acids.
Basis
Glass fibres, bonded with special acid resistant elastomers.
Areas of application
This material is resistant to a wide variety of media and especially to acids.
- Synthetic Fibre
- Hypalon® Binde
- Acid Resistant
- Good Oil-Fuel Resistance
- Good Gas Sealability
- No Colour Added
Typical values refer to 1/16” material unless otherwise specified:
| Creep Relaxation ASTM F38B (1/32”) | 30% |
| Sealability ASTM F37A (1/32”) | < 0.30 ml/hr |
| Gas Permeability DIN 3535/6 | < 0.5 ml/min |
| Compressibility ASTM F36J | 9% |
| Recovery ASTM F36J | 50% minimum |
| Klinger Hot Compression Test | (tested at 3,625-psi gasket stress, and to 392°F [200°C]) |
| Thickness Decrease 73°F (23°C) | 7% initial |
| Thickness Decrease 572°F (300°C) | 17% additional |
| Weight Increase | |
| ASTM F146 after immersion in Fuel B | |
| 5h/73°F (23°C) | 10% maximum |
| Thickness Increase | |
| ASTM F146 after immersion in | |
| ASTM Oil 1, 5h/300°F (149°C) | 0-5% |
| ASTM Oil IRM903, 5h/300°F (149°C) | 5-10% |
| ASTM Fuel A, 5h/73°F (23°C) | 0-5% |
| ASTM Fuel B, 5h/73°F (23°C) | 0-10% |
| Dielectric Strength | |
| ASTM D149-95a | 9 kV/mm |
| ASTM F104 Line Call Out | F712100B5E22K6M5 |
| Leachable Chloride Content | |
| FSA Method (Typical) | n/a |
| Density ASTM F1315 | 106 lb/ft3 (1.7 g/cc) |
