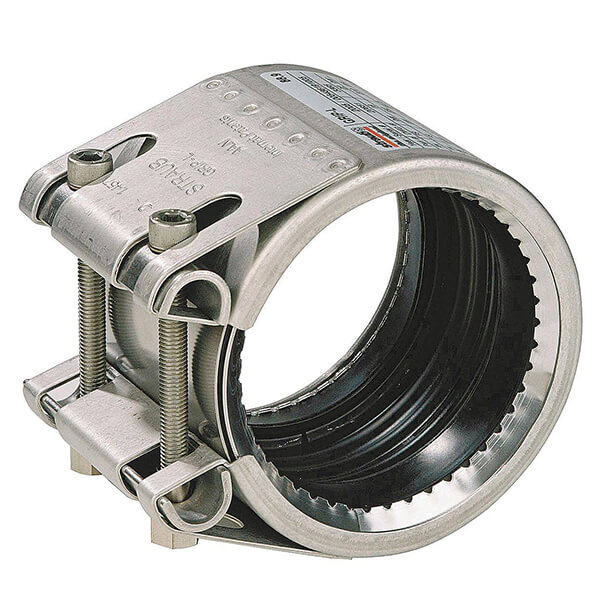

Straub - Grip L

Straub – Grip L

The temperature ranges indicated are based on the use of EPDM sealing sleeves.
EPDM and NBR sealing sleeves are used by default.

Various coupling sizes also available with FPM/FKM sealing sleeves (Temperature range: -20°C to 180°C).

Various coupling sizes also available with H-NBR sealing sleeves (Temperature range: -20°C to 125°C).

All diameters and designs available plus accessories (strip inserts, stiffening rings, fitting pliers, tensioning straps) can be obtained from the technical manual.

Construction and design of the STRAUB pipe couplings comply with the directives of DIN 86128-1 and 86128-2.

Download Technical Data Sheet

Download Straub Technical Manual

Category:

Dimensions

Available in:
PICSG026.9N 26.9mm Straub Grip L – EPDM/NBR-S/S
PICSG033.7N 33.7mm Straub Grip L – NBR-S/S
PICSG038N 38.0mm Straub Grip L – NBR-S/S
PICSG042.4 42.4mm Straub Grip L – EPDM=S/S
PICSG044.5N 44.5mm Straub Grip L – EPDM/NBR-S/S
PICSG048.3 48.3mm Straub Grip L – EPDM-S/S
PICSG48.3N 48.3mm Straub Grip L – NBR-S/S
PICSG057 57.0mm Straub Grip L – EPDM-S/S
PICSG057N 57.0mm Straub Grip L – NBR-S/S
PICSG073 73.0mm Straub Grip L – EPDM-S/S
PICSG076.1 76.1mm Straub Grip L – EPDM-S/S
PICSG076.1FF 76.1mm Straub Grip L – (FF) EPDM-S/S
PICSG088.9 88.9mm Straub Grip L – EPDM-S/S
PICSG088.9N 88.9mm Straub Grip L – NBR-S/S
PICSG108N 108.0mm Straub Grip L – EPDM/NBR-S/S
PICSG114.3N 114.3mm Straub Grip L – NBR-S/S
PICSG232.9 323.9mm Straub Grip L – EPDM Liner
